XPS Tile Backer Boards are made from extruded polystyrene foam, which is a closed-cell foam
that provides excellent waterproof and thermal insulation properties.
YUTOO tile backing plate is coated on each side with fiberglass mesh embedded in a polymer mortar.

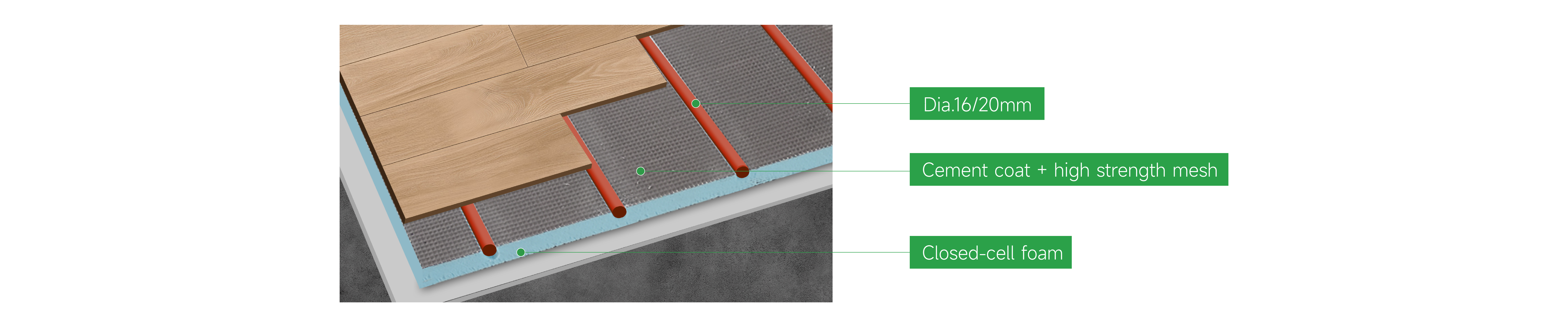

XPS UnderFloor Heating Backer Board
Yutoo underfloor heating Tile backer board is pre-grooved and designed for maximum efficiency and minimal floor height impact for underfloor and under tile heating applications,offering high compressive strength and moisture proof. It is an ideal product which save your energy bills reducing heat loss.
Yutoo Underfloor Heating Tile Backer Boards are the perfect solution to insulate and waterproof in one operation. It is Ideal to use as an insulation board for most internal construction tasks.
- Material
- XPS + Fiberglass Mesh + Cement Mortar
- Compressive Strength
- 350-1250kpa
- flammability rating
- B1
- Operating Temperature
- '-50°c to 75°c

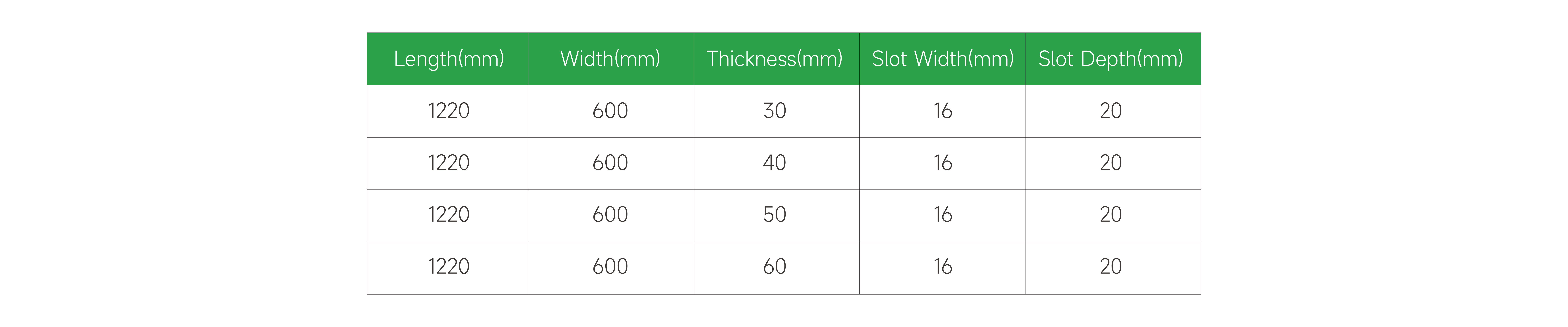

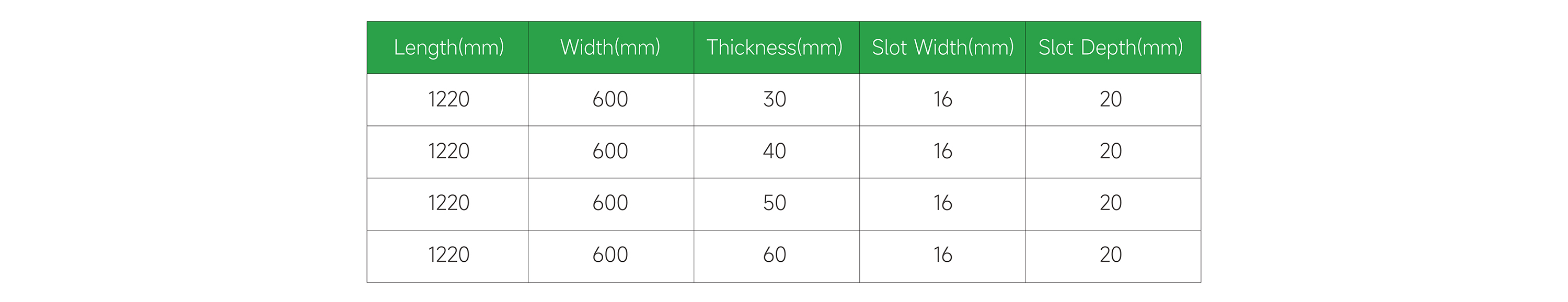

- Size
- 600mm*1200mm,Customized
- Density
- 32-55 kg/m3
- Grooved
- Ω - Shaped
- Heating System
- Hydronic
